Material yang dapat diproses :
Limbah beton,bijih besi, bijih tembaga, emas, mangan, batu kerikil, batu granit, batu kali, basal, batu kapur, dolomit, batu kuarsa, batubara, dll.
Ikhtisar :

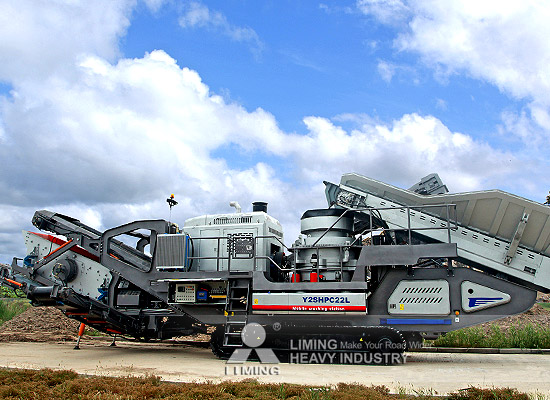

Crawler type mobile crusher dan screening didesain dan dirancang oleh para insinyur kami yang berpengalaman. Sehingga mempunyai kinerja yang stabil dan struktur yang indah. Produk ini banyak digunakan untuk pembangunan jalan raya dan jembatan, proyek konstruksi bangunan,areal pertambangan dan bidang lainnya.
Crawler type mobile crusher ini mempunyai konfigurasi dengan Jaw Crusher, Cone Crusher dan juga VSI. Yang dimana mempunyai performa tinggi dan efektif dalam pengoperasian. Yang berimbas pada meningkatnya keuntungan bisnis dengan memaksimalkan kinerja dari tambang anda.
Fitur :
1. Memiliki kinerja yang sangat baik dari mesin diesel Cummins, yang dimana irit bahan bakar dan memiliki tingkat kebisingan yang rendah. Dengan opsi sistem pemanasan mesin agar dapat beroperasi pada lingkungan dengan suhu di bawah -25℃.
2. Sasis dengan bentuk kapal baja dengan intensitas tinggi dan mempunyai tekanan yang rendah pada permukaan tanah sehingga mudah untuk ditransport pada medan yang sulit seperti gunung dan rawa.
3. Diperlengkapi dengan motor bertorsi tinggi yang memberikan tenaga yang kuat sehingga menghasilkan kinerja yang sempurna.
4. Sistem-Servo yang memberikan kemudahan dalam pengoperasian, yang dimana telah diperlengapi dengan sistem CVT (Continuous Variable Transmission)
5. Sistem penghancur dan penyaring pada jenis ini menggunakan teknologi termutakhir dari perusahaan kami. Sehingga menjamin kualitas dari keseluruhan perangkat peralatan.
6. Didukung oleh Tombol Cerdas Ganda yang berfungsi untuk memindah sumber tenaga denga mudah dari pembangkit listrik bertenaga solar(genset) maupun dengan tenaga listrik yang tersedia di tempat.
Crawler Type Mobile Jaw Crusher / Impact Crusher
Specifications: | |||||
Technical Data/Model | YG935E69L | YG935FW1214ⅡL | YG1138E71L | YG1138FW315ⅡL | YG1138EW86L |
Vibrating Feeder | GZD-960×3500 | GZD-960×3500 | GZD-1100×3800 | GZD-1100×3800 | GZD-1100×3800 |
Crusher | PE600×900 | PFW-1214Ⅱ | PE750×1060 | PFW-1315Ⅱ | PEW860 |
Main Belt Conveyor | B800×8.5M | B800×8.5M | B1000×9M | B1000×9M | B1000×9M |
Discharging Height of Main Belt Conveyor (mm) | 3200 | 3200 | 3500 | 3500 | 3500 |
Side-opening Belt Conveyor (Optional) | B450×3M | B450×3.2M | B500×3.5M | B500×3.5M | B500×3.5M |
Discharging Height of Side-opening Belt Conveyor (mm) | 2800 | 2800 | 3100 | 3000 | 3100 |
Power of Genset (kW) | 180 | 250 | 200 | 300 | 250 |
Transportation Length (mm) | 11900 | 11900 | 13300 | 13300 | 14200 |
Transportation Width (mm) | 3100 | 3100 | 3100 | 3100 | 3300 |
Transportation Height (mm) | 3650 | 3650 | 4500 | 4500 | 5000 |
Transportation Weight (t) | 43.5 | 50 | 59 | 59 | 67 |
Working Length (mm) | 12100 | 12100 | 13500 | 13500 | 15200 |
Working Width (mm) | 3100 | 3100 | 3100 | 3100 | 3300 |
Working Height (mm) | 4100 | 4100 | 5100 | 4800 | 5500 |
Any change of technical data shall not be advised additionally.
Standard Crawler Type Cone Crusher Plant Specifications:
Specifications: | |||||
Model | YCS160L | YHP220L | |||
Equipment Configuration | Crusher | Cs160 | Hp220 | ||
Belt Type Vibrating Feeder | GLD-12×4/15 | GLD-15×4/15 | |||
Volume of Upper Hopper | 5 | 5 | |||
Height of Final Products Receiving | 3100 | 3100 | |||
Model of Main Belt Conveyor | B1000×9M | B1000×9M | |||
Genset (Kw) | 270 | 330 | |||
Transportation Length (mm) | 12500 | 12500 | |||
Transportation Width (mm) | 3240 | 3240 | |||
Working Height (mm) | 3900 | 3900 | |||
Working Weight (t) | 36.2 | 41.4 |
Any change of technical data shall not be advised additionally.
Standard Crawler Type Mobile Screening Plant
Classification of Items | A Type Dual Power Crawler Type Mobile Feeding and Screening Plant | B Type Dual Power Crawler Type Mobile Sorting and Screening Plant | |||||
Model | Y3S154GL | Y3S184GL | Y3S186GL | Y3S154BL | Y3S184BL | Y3S186BL | |
Vibrating Feeder | 3YZS1548 | 3YZS1848 | 3YZS1860 | 3YZS1548 | 3YZS1848 | 3YZS1860 | |
Feeding Hopper | Belt Conveyor Feeding | Sorting Conveyor Feeding | |||||
Belt Conveyor | Feeding Belt Conveyor | B1000×4M | B1000×4M | B1200×4.5M | B1200×3M | B1200×3M | B1200×3M |
Main Belt Conveyor | B800×5M | B1000×5M | B1000×5M | B1000×8M | B1200×8M | B1200×9M | |
Belt Conveyor Under Vibrating Screen | B800×4.5M | B1000×4.5M | B1000×5.5M | B800×7M | B1000×7M | B1000×8M | |
Left Side-opening Belt Conveyor | B500×7.3M | B500×7.3M | B650×7.3M | B500×7.3M | B500×7.3M | B650×7.3M | |
Right Side-opening Belt Conveyor 1 | B500×7.3M | B500×7.3M | B650×7.3M | B500×7.3M | B500×7.3M | B650×7.3M | |
Right Side-opening Belt Conveyor 2 | B500×7.3M | B500×7.3M | B650×7.3M | B500×7.3M | B500×7.3M | B650×7.3M | |
Genset (kW) | 120 | 120 | 120 | 120 | 120 | 120 | |
Transportation Length (mm) | 12300 | 12300 | 13500 | 12000 | 12000 | 13200 | |
Transportation Width (mm) | 2700 | 2920 | 2920 | 2900 | 3150 | 3150 | |
Working Height (mm) | 3900 | 3900 | 3900 | 3600 | 3600 | 3700 | |
Working Weight (t) | 28 | 30 | 34 | 28 | 32 | 35 |
Note:1.There are 6 models with vibrating screen of 3 decks and 6 models with vibrating screen of 2 decks.
2.When the vibrating screen with 3 decks is replaced by vibrating screen with 2 decks, Right Side-opening Belt Conveyor 2 shall be removed. The rest of the items remain the same.
